Products Description

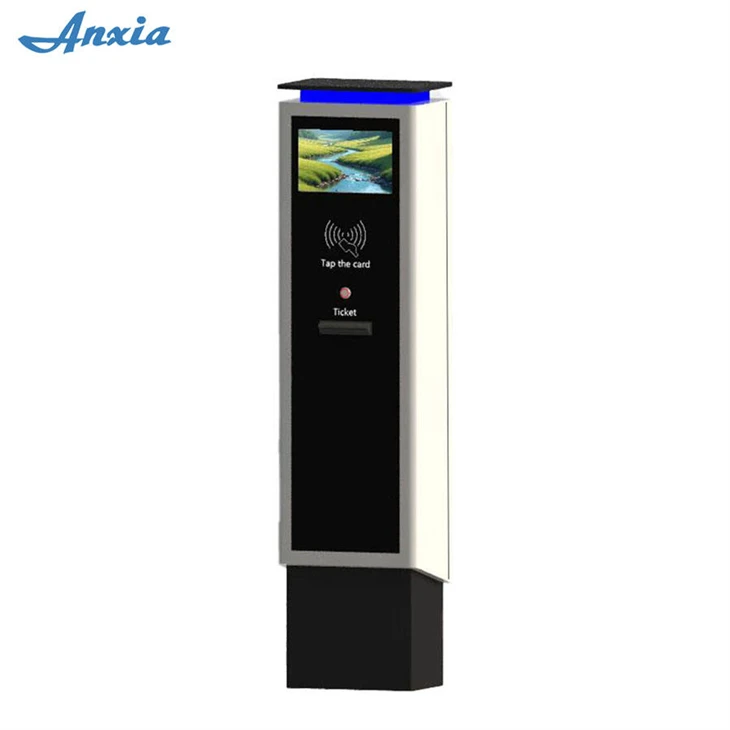

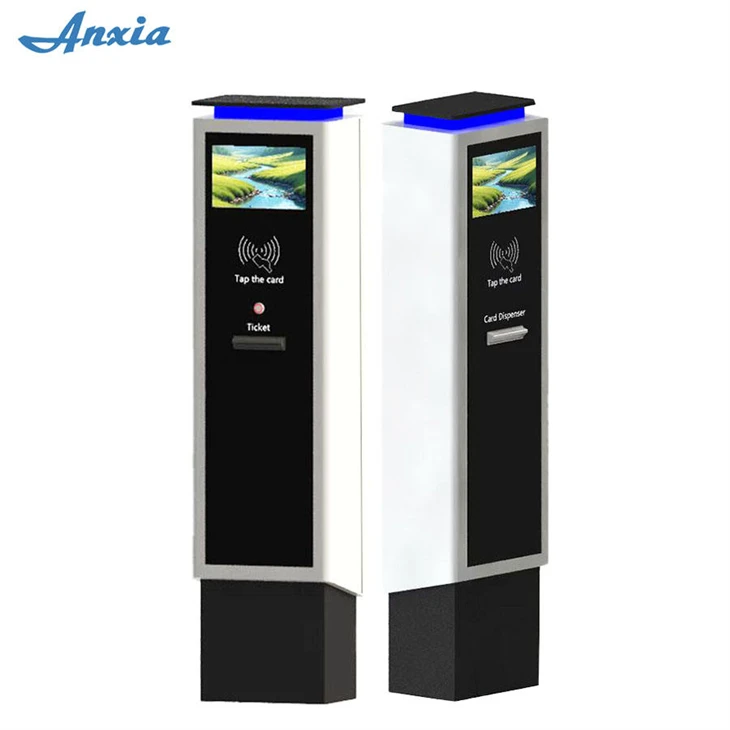

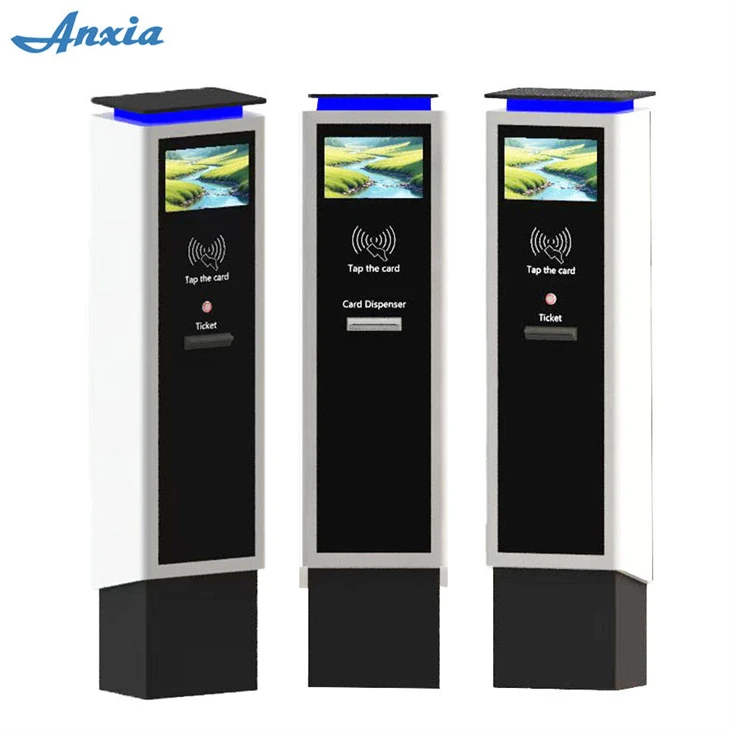

Parking Ticket Dispenser
Product Overview
The Parking Ticket Dispenser is an automated ticket dispensing terminal for parking lot entrances. It supports barcode ticket printing and IC/ID card reading, and can be integrated with gate barriers, induction loops, and payment systems. Suitable for high-traffic commercial parking scenarios, its ticket dispensing speed and stability meet the needs of continuous operation.
Features
Ticketing and Media
Ticket Type: Thermal paper ticket, printing includes entry time, date, and barcode.
Ticketing Speed: High-speed ticketing design with anti-ticket jamming mechanism, adaptable to continuous traffic flow during peak hours.
Card and Identity Recognition
Card Type Support: IC card / ID card
Typical Scenarios: Monthly pass vehicles use card for entry, temporary vehicles use ticket for entry; the same terminal can handle both types of users.
System Integration
Communication Protocol: RS485 / TCP-IP
Linked Devices: Barrier gate, loop detector, payment terminal, parking guidance system
Offline Capability: Supports offline operation; data is synchronized after network recovery, avoiding entrance paralysis due to network outages.
Environmental Adaptability
Operating Temperature: -35°C to +65°C, covering outdoor deployment in extremely cold and high-temperature regions. Protective Design: Features lightning protection, overload protection, and anti-interference capabilities.
Applicable Scenarios
| Scenario Type | Recommendation Reasons |
|---|---|
| Large Office Building Parking Lot | Fast ticket issuance during peak hours, reducing entrance queues |
| Shopping Mall Parking Lot | High temporary vehicle traffic, large-capacity thermal paper rolls reduce maintenance frequency |
| Public Parking Lot | Supports mixed management of monthly passes/temporary vehicles, integrating barrier gates and payment systems |
| Unmanned Entrance | Offline operation + remote monitoring, reducing on-site manpower requirements |
FAQ
Q1: Can this ticket machine only issue tickets, or can it also accept card payments?
A: Both. The device has a built-in IC/ID card reader module. Temporary vehicles take tickets to enter, while monthly pass vehicles can directly swipe their cards for passage.
Q2: Does it need to be compatible with existing barrier gate systems?
A: Supports RS485 and TCP/IP protocols, compatible with most barrier gates, inductive loop detectors, and parking management software on the market. It is recommended to confirm the communication interface of your existing system before deployment.
Q3: Will it automatically remind you when the paper tickets are used up?
A: The device supports remote monitoring. With management software, it can monitor the remaining paper rolls and device status, facilitating timely replacement by maintenance personnel.
Q4: Can it be used outdoors in rainy weather?
A: The operating temperature range covers -35°C to +65°C and has lightning and overload protection. It is recommended to install it at a covered entrance/exit location to extend its service life.
Q5: If the ticket dispenser malfunctions, can the vehicle still enter?
A: The device supports offline operation. If the ticket dispensing module malfunctions, the administrator can switch to a backup mode (such as manual card issuance or license plate recognition for entry), depending on the on-site system configuration.
Q6: If the ticket dispenser malfunctions, can the vehicle still enter?
A: The device supports offline operation. If the ticket dispensing module malfunctions, the administrator can switch to a backup mode (such as manual card issuance or license plate recognition for entry), depending on the on-site system configuration.
