Products Description
Security Parking Bollards are professional anti-terror and anti-collision safety equipment. Featuring strong impact resistance, stable operation and all-weather adaptability, they serve as an effective physical isolation barrier. With diverse intelligent control methods and easy system integration, these bollards are ideal for vehicle access management and perimeter security protection in various public and private areas.
Products Description
1. Heavy-Duty Stainless Steel Construction
The Security Parking Bollards are manufactured from SUS304 stainless steel with a wall thickness ranging from 6 mm to 12 mm, providing outstanding structural strength and corrosion resistance. Compared with ordinary carbon steel bollards, stainless steel construction offers superior durability in coastal, humid, and industrial environments while maintaining an attractive appearance over years of outdoor use.
2. High Impact Resistance for Vehicle Protection
Designed for perimeter security applications, the bollards feature a reinforced internal structure and deep foundation anchoring system. Depending on the model, they can withstand vehicle impacts from passenger cars, SUVs, and light trucks traveling at significant speeds. The robust design helps prevent unauthorized vehicle intrusion and protects pedestrians, buildings, government facilities, and critical infrastructure from ram-raid attacks and accidental collisions.
3. Powerful Hydraulic Drive System
The automatic Security Parking Bollards are equipped with an industrial-grade hydraulic power unit featuring stable pressure output and low operating noise. The standard lifting time is typically 3–6 seconds, allowing rapid access control in high-traffic areas. The hydraulic system is designed for continuous operation and can support more than 100 lifting cycles per day without performance degradation.
4. IP68 Waterproof and All-Weather Operation
The bollard body and hydraulic components are engineered to achieve IP68 protection, preventing water, dust, mud, and debris from entering critical components. Operating temperatures typically range from -40°C to +70°C, ensuring reliable performance in extreme cold, heavy rain, snow, and high-temperature environments.
5. Intelligent Safety Protection System
Multiple infrared and pressure-sensitive safety mechanisms are integrated into the system. If an obstacle is detected during the lifting or lowering process, the bollard automatically stops or reverses movement to prevent injury and equipment damage. Emergency manual release functionality allows the bollard to retract quickly during power outages, ensuring unobstructed access for emergency vehicles.
6. Advanced Surface Treatment Technology
The stainless steel surface undergoes precision polishing, brushed finishing, or powder coating treatment to enhance scratch resistance and weather durability. Optional reflective warning bands improve nighttime visibility and comply with road safety requirements. The surface finish remains resistant to fading, peeling, and corrosion even after prolonged outdoor exposure.
7. Long Service Life and Low Maintenance Cost
The hydraulic unit utilizes industrial-grade seals, stainless steel cylinders, and wear-resistant components to ensure long-term reliability. Under normal operating conditions, the service life can exceed 3 million operating cycles. The modular design allows quick maintenance and replacement of key components, significantly reducing downtime and maintenance expenses.
8. Flexible Dimensions for Different Security Levels
The bollards are available in diameters ranging from 168 mm to 275 mm and heights from 600 mm to 900 mm above ground level. Fixed, removable, semi-automatic, and fully automatic versions are available to meet various security requirements, from parking lot management to high-security government and military facilities.
9. Suitable for Critical Security ApplicationsThe Security Parking Bollards are widely used in government buildings, embassies, airports, military bases, commercial centers, pedestrian zones, schools, hospitals, and intelligent parking systems. Their combination of physical protection, intelligent control, and long-term reliability makes them an ideal solution for modern vehicle access management.
Products Parameter
Security Parking Bollards – Technical Specifications
| Item | Specification |
|---|---|
| Control / Power | Electro-hydraulic, 220V |
| Bollard Body | 304 stainless steel, Ø219mm, thickness 6±1mm, rise height 600mm |
| Outer Casing | Ø350×800mm, bury depth 800mm, flange thickness 8±1.5mm |
| Weight | Approx. 62kg |
| Ingress Protection | IP68 |
| Impact Rating | K12 (stops vehicle at 120km/h, unit remains operational) |
| Load Capacity | 100-ton truck passable |
| Rise / Lower Speed | Rise ≤4s, Lower ≤3s |
| Operating Temp | -40°C to +75°C (auto heating recommended below -20°C) |
| Storage | -10°C to +65°C, protected from rain, moisture, and dust |
Construction drawings for rising bollards (800mm pre-embedded).
For more details, please contact us.
Certifications
Wiring Diagram Overview

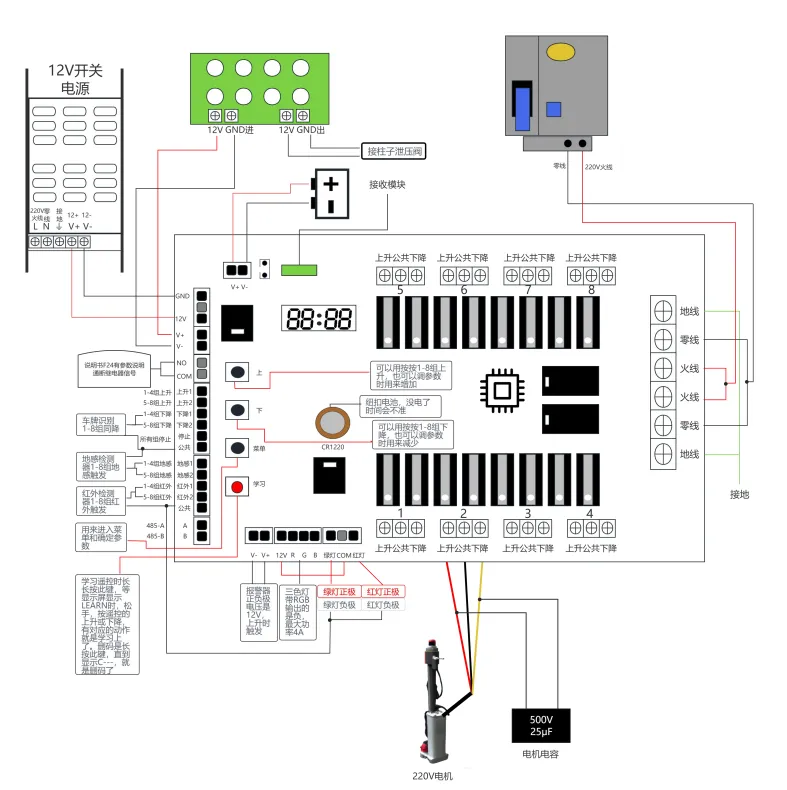

The wiring system is designed for easy installation and maintenance. All terminals are clearly marked to simplify field wiring and troubleshooting.The image below shows the motherboard diagram and wiring diagram of the bollards.
FAQ
Q1. What Are Security Parking Bollards Used For?
A: Security Parking Bollards are designed to control vehicle access, protect pedestrians, and secure buildings or restricted areas from unauthorized vehicle entry. They are commonly installed in parking lots, commercial properties, government facilities, airports, schools, hospitals, and pedestrian zones to prevent accidental or intentional vehicle intrusion.
Q2. What Is the Difference Between Fixed and Automatic Security Bollards?
A: Fixed bollards provide permanent vehicle protection and require no power supply, making them ideal for areas where access is always restricted. Automatic security bollards can be raised or lowered through hydraulic or electric systems, allowing authorized vehicles to enter while maintaining a high level of security.
Q3. How Strong Are Security Parking Bollards?
A: The strength of a security parking bollard depends on its material, wall thickness, foundation depth, and impact rating. High-security models manufactured from heavy-duty stainless steel or carbon steel can withstand significant vehicle impact forces and are designed to protect critical infrastructure, commercial buildings, and public spaces.
Q4. Can Security Parking Bollards Work During a Power Failure?
A: Yes. Most automatic security bollards are equipped with emergency lowering systems. In the event of a power outage, the bollard can be manually lowered or automatically retracted through a backup system to ensure emergency vehicle access and uninterrupted evacuation routes.
Q5. Can Security Parking Bollards Be Integrated with Access Control Systems?
A: Yes. Modern security bollards support integration with RFID card readers, license plate recognition systems, biometric devices, remote controls, key switches, and centralized security management platforms. Standard communication interfaces allow seamless connection with existing access control systems.
Q6. Are Security Parking Bollards Suitable for Outdoor Use?
A: Absolutely. Quality security bollards are manufactured from corrosion-resistant materials such as SUS304 stainless steel and are designed with waterproof and dustproof protection. They can operate reliably in rain, snow, extreme temperatures, and other harsh outdoor environments.
